In an era where information travels at the speed of light, optical modules, as the "bridge" of network communications, undertake the important task of converting electrical signals and optical signals, allowing data to be transmitted rapidly in optical fibers. Behind the stable operation of optical modules, there is an "invisible guardian" - Clock Data Recovery (CDR) technology. Although it is not often mentioned by the public, it plays a vital role in the field of optical communications. Today, let us unveil the mystery of CDR and see how it ensures accurate data transmission.

What is Clock Data Recovery (CDR)?

Clock and data recovery (CDR) has two core tasks: recovering the clock signal and recovering the data signal. In an optical communication system, the transmitter encodes the data signal and the clock signal together and sends them out. However, during long-distance transmission, the signal will be distorted and attenuated due to factors such as fiber loss, dispersion, and external noise interference, and the clock signal and data signal will become unclear.

CDR technology is like a skilled "restorer". It can separate and restore the original clock signal and data signal from the received distorted signal. The clock signal provides a time reference for data reading and processing, just like a metronome in a band, allowing data transmission and processing to proceed in an orderly manner; the data signal carries the actual information we need to transmit, such as web page content, videos, files, etc. Only by accurately restoring these two signals can we ensure that the receiving end accurately restores the data of the sending end and achieve efficient and reliable communication.

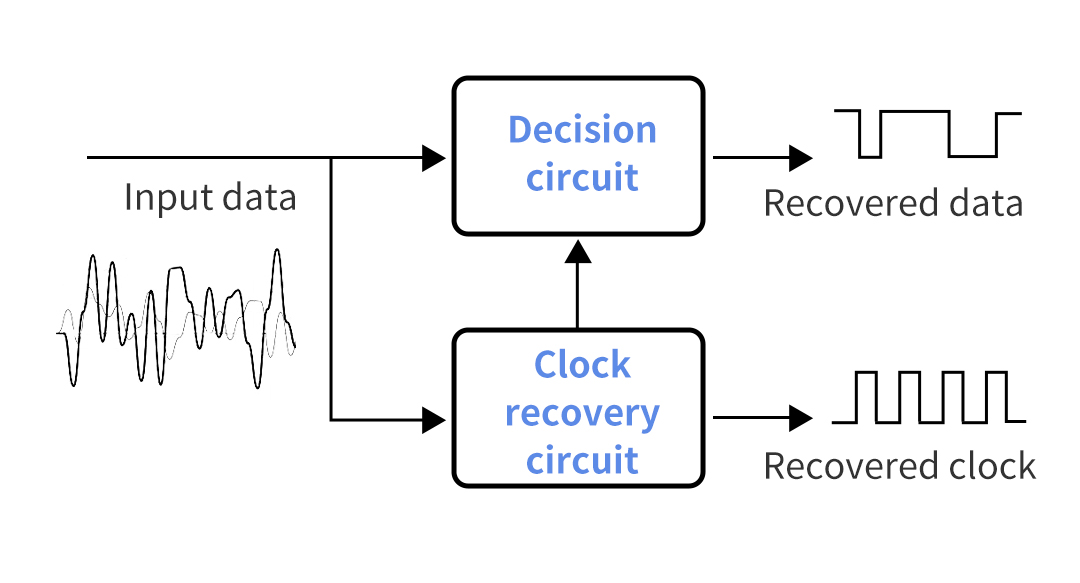

How CDR works

The working principle of CDR involves multiple complex and delicate links, and is mainly implemented by key technologies such as phase-locked loop (PLL) and data sampling.

First, after the received signal enters the CDR circuit, the phase-locked loop begins to work. The phase-locked loop consists of three main parts: a phase detector (PD), a loop filter (LF), and a voltage-controlled oscillator (VCO). The phase detector is responsible for comparing the phase difference between the clock component in the input signal and the clock signal output by the voltage-controlled oscillator, and converting this phase difference into a voltage signal. The loop filter filters the voltage signal to remove high-frequency noise and obtain a smooth control voltage. The voltage-controlled oscillator adjusts its own oscillation frequency and phase according to this control voltage, so that it gradually synchronizes with the clock component in the input signal. Through continuous comparison and adjustment, the phase-locked loop eventually locks the clock frequency and phase of the input signal and restores an accurate clock signal.

After the clock signal is recovered, the input data signal is sampled using this precise clock signal as the sampling clock. By sampling at the optimal sampling time of the data signal, the bit error rate caused by signal distortion can be minimized, thereby restoring the original data signal and completing the entire clock data recovery process.

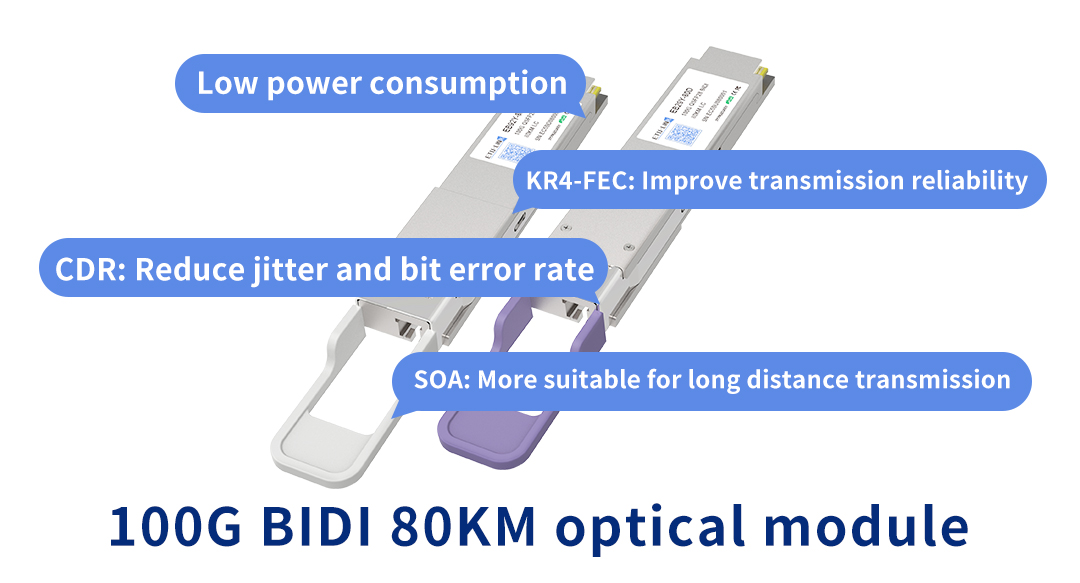

Importance of CDR in Optical Modules

In the practical application of optical modules, the importance of CDR technology is self-evident. With the rise of high-speed communication scenarios such as 5G and data centers, data transmission rates are getting higher and higher, from 10G and 25G to today's 100G, 400G and even higher. In such a high-speed transmission environment, even a slight distortion of the signal may cause a large number of data errors, seriously affecting the communication quality.

CDR technology can effectively overcome the signal integrity problem in high-speed transmission, ensuring that the optical module always maintains stable and reliable performance in long-distance, high-speed data transmission. It not only improves the accuracy of data transmission and reduces the bit error rate, but also enhances the adaptability of the optical module to different transmission environments and signal quality, allowing the optical module to work normally in complex and changing network environments, providing solid technical support for the low latency and high bandwidth requirements of 5G networks and the rapid exchange of massive data in data centers.

Development Trend of CDR Technology

With the continuous evolution of optical communication technology, higher requirements are also put forward for CDR technology. In the future, CDR technology will develop in the direction of higher speed, lower power consumption and smaller size. On the one hand, in order to meet the growing demand for ultra-high-speed data transmission, CDR needs to have the ability to process higher-speed signals and continuously break through the existing rate bottleneck; on the other hand, in large-scale application scenarios such as data centers, reducing power consumption has become a key requirement, and new low-power CDR technology will help reduce the energy consumption and operating costs of equipment. At the same time, as the integration of optical modules becomes higher and higher, CDR circuits also need to be further reduced in size to adapt to more compact design requirements. In addition, artificial intelligence and machine learning technologies are also expected to be integrated into the CDR field, optimizing the performance of CDR through intelligent algorithms, so that it can respond to complex and changing signal environments more quickly and accurately.

As one of the core technologies for the stable operation of optical modules, the clock data recovery (CDR) technology plays an indispensable role in the field of optical communications. It is like a silent hero behind the scenes, guarding the accurate transmission of data with precise "hands" and building an efficient and stable communication network for us. With the continuous innovation and development of technology, CDR will continue to upgrade and bring more possibilities to the optical communication industry.
